Automotive

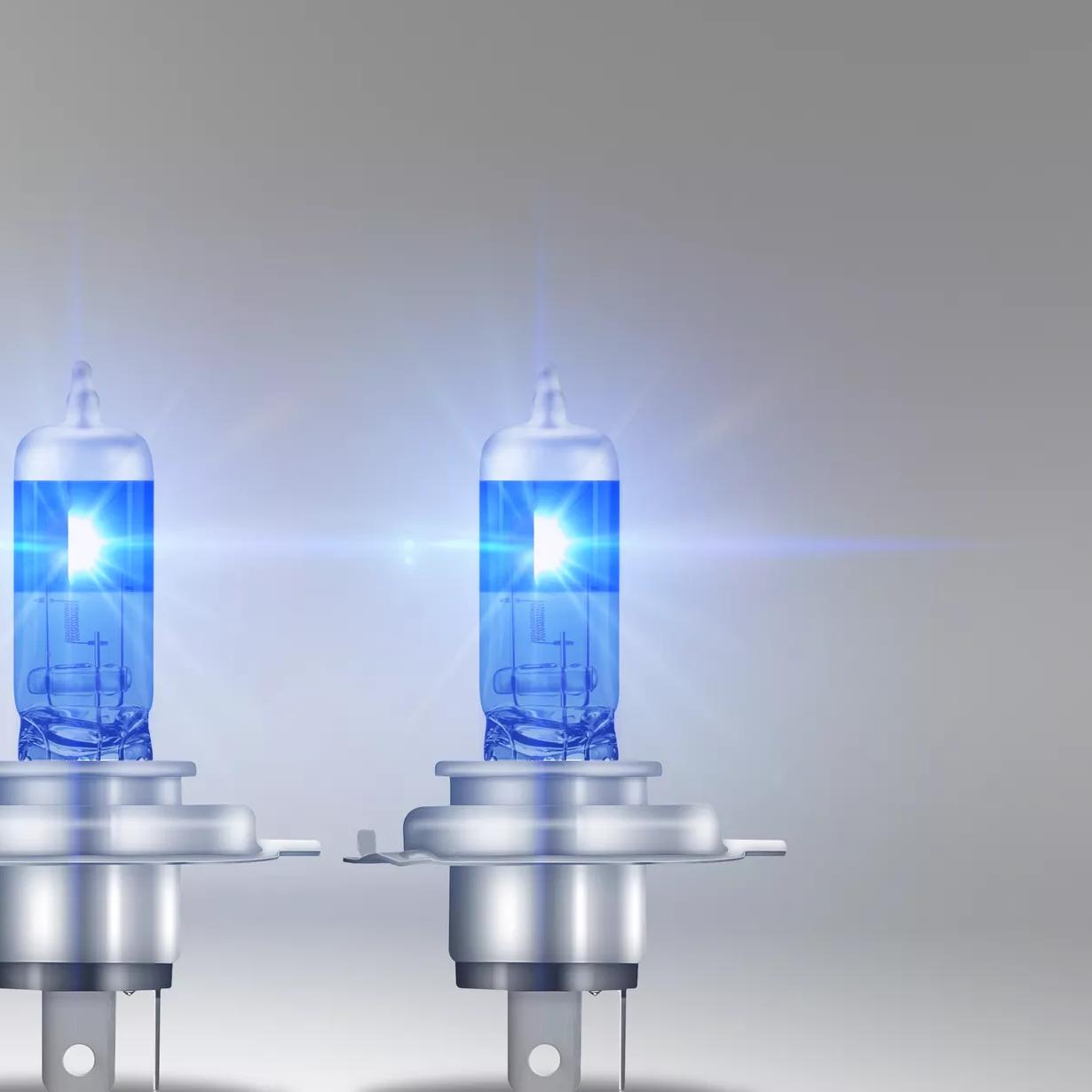

COOL BLUE BOOST -

Hyper white light with up to 5,500 K for off-road use*

COOL BLUE BOOST features hyper white halogen light for LED look and high color temperatures of up to 5,500 K. The lamps generate enhanced brightness. These products do not have ECE approval. This means they must not be used on public roads in any exterior application. Use on public roads leads to cancellation of operating license and loss of insurance coverage. Several countries do not allow sale and use of these products. Please contact your local distributor for information on the availability in your country.

^{1) Measured in headlamps.}

HAVE ON ADEQUATE GLOVES WHEN MOUNTING AND DEMOUNTING

OPERATION ONLY IN LAMP WITH PROTECTIVE COVER

CAR LAMP

DO NOT GIVE IN CHILDRENS HANDS

ATTENTION HOT

PROTECT FROM SHOWER WATER

DO NOT TOUCH FLASK

SWITCH OFF HEADLIGHTS BEFORE CHANGING LAMPS

USE ADEQUATE EYE PROTECTION WHEN MOUNTING AND DEMOUNTING

NON HOUSEHOLD ILLUMINATION

ACPEIP marking China RoHS below the limits

Hyper white light for stylish LED look

For fatigue-free and comfortable driving

Up to 5,500 K¹⁾

High contrast and most stylish look

Enhanced brightness

More light allows to see farther and therefore react sooner

Technical Data

Product information

Product type (off-road vs. on-road)

Off-road ≙ H4

Application (Category and Product specific)

Halogen headlight lamp

General Product Information

Global order reference

62193CBB

Electrical Data

Power input

75 / 68 W

Nominal voltage

12.0 V

Nominal wattage

100/90 W

Test voltage

13.2 V

Photometric Data

Nominal luminous flux

1600/760 lm

Luminous flux tolerance

±15 %

Color temperature

5500 K

Physical Attributes & Dimensions

Diameter

17.0 mm

Product weight

23.70 g

Lamp base

P43t

Length

87.0 mm

Lifetime Data

Lifespan B3

100 / 200 hr

Lifespan Tc

200 / 400 hr

Capabilities

Technology

HAL

Certificates & standards

ECE category

-

Environmental & Regulatory Information

Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)

Primary article identifier

4062172388207 | 4052899436671 | 4052899439023 | 4052899437654 | 4052899439788

Candidate list substance 1

No declarable substances contained

Declaration no. in SCIP database

No declarable substances contained

Packaging information

EAN	Unit	Piece	Dimension l x w x h	Weight	Volume
4052899439788	HCB HARD COVER BOX	2	113mm x 49mm x 105mm	139.00g	0.61dm³
4062172059350	VS SHIPPING BOX	10	268mm x 126mm x 125mm	782.00g	4.22dm³

Downloads

Data sheets

Family data sheet

GPRS_Safety symbols instructions

User instruction

Flyer Cool Blue Boost (EN)

Brochures

Flyer Cool Blue Boost Jeep Version (EN)

Brochures

Tools

Vehicle Lamp Finder

Vehicle Lamp Finder
Find the right lamps for your car, motorcycle or truck.

https://www.osram.com/nb-led

Product label

12V lamp COOL BLUE BOOST
